Stainless Steel Angle Steel

Stainless steel angle steel can be composed of different force components according to the different needs of the structure, and can also be used as a connector between components. Widely used in various building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks and warehouse shelves. Stainless steel angle steel is a carbon structural steel for construction. It is a simple section steel, mainly used for metal components and plant frames. In use, it requires good weldability, plastic deformation performance and certain mechanical strength. The raw material billet for the production of stainless steel angle steel is low-carbon square billet, and the finished stainless steel angle steel is delivered in hot-rolled forming, normalizing or hot-rolled state.

Category：

E-Mail：

Keywords：

Description

Product Description

Product Parameters

Material	A36,St37,S235J0,S235J2,St52,16mn,S355JOQ195,Q215,Q235B,Q345B,S235JR,S355JR,S355,SS440,SM400A,SM400BA572,GR50,GR60,SS540
Scope of production	H100100-H400400H15075 -H900300
Thickness	1-30mm
Width	15-400mm
Length	6m, 9m, 12mor according to customer requirements
Technology	Hot rolled, welded
Standard	ASTM,AISI,JIS,GB, DIN,EN
Surface	Galvanized, painted;or according to your requirements
supply capacity	2000tons/Day
Business Type	Manufacturer
Certificate	ISO, SGS,BV
Application	Widely used in building structures and engineering construction, such as room beams, ship beams, industrial furnaces, etc.
loading port	Any port in China
Packaging	Standard export packing or as your request
Payment Method	Wire transfer, spot letter of credit, Western Union, payment documents, acceptance documents, PayPal.

型号								单角钢								双角钢
		圆角	重心矩	截面积	质量	惯性矩	截面模量		回转半径			iy, 当 a 为下列数值
		R	Z0	A	质量	Ix	Wxmax	Wxmin	ix	ix0	iy0	6mm	8mm	10mm	12mm		14mm
		（mm）		(cm2)	(kg/m)	(cm4)	(cm3)		(cm)			(cm)
L90×	6	10	24.4	10.64	8.35	82.77	33.99	12.61	2.79	3.51	1.8	3.91	3.98	4.05	4.12		4.2
	7		24.8	12.3	9.66	94.83	38.28	14.54	2.78	3.5	1.78	3.93	4	4.07	4.14		4.22
	8		25.2	13.94	10.95	106.5	42.3	16.42	2.76	3.48	1.78	3.95	4.02	4.09	4.17		4.24
	10		25.9	17.17	13.48	128.6	49.57	20.07	2.74	3.45	1.76	3.98	4.06	4.13	4.21		4.28
	12		26.7	20.31	15.94	149.2	55.93	23.57	2.71	3.41	1.75	4.02	4.09	4.17	4.25		4.32
L100×	6	12	26.7	11.93	9.37	115	43.04	15.68	3.1	3.91	2	4.3	4.37	4.44	4.51		4.58
	7		27.1	13.8	10.83	131	48.57	18.1	3.09	3.89	1.99	4.32	4.39	4.46	4.53		4.61
	8		27.6	15.64	12.28	148.2	53.78	20.47	3.08	3.88	1.98	4.34	4.41	4.48	4.55		4.63
	10		28.4	19.26	15.12	179.5	63.29	25.06	3.05	3.84	1.96	4.38	4.45	4.52	4.6		4.67
	12		29.1	22.8	17.9	208.9	71.72	29.47	3.03	3.81	1.95	4.41	4.49	4.56	4.64		4.71
	14		29.9	26.26	20.61	236.5	79.19	33.73	3	3.77	1.94	4.45	4.53	4.6	4.68		4.75
	16		30.6	29.63	23.26	262.5	85.81	37.82	2.98	3.74	1.93	4.49	4.56	4.64	4.72		4.8
L110×	7	12	29.6	15.2	11.93	177.2	59.78	22.05	3.41	4.3	2.2	4.72	4.79	4.86	4.94		5.01
	8		30.1	17.24	13.53	199.5	66.36	24.95	3.4	4.28	2.19	4.74	4.81	4.88	4.96		5.03
	10		30.9	21.26	16.69	242.2	78.48	30.6	3.38	4.25	2.17	4.78	4.85	4.92	5		5.07
	12		31.6	25.2	19.78	282.6	89.34	36.05	3.35	4.22	2.15	4.82	4.89	4.96	5.04		5.11
	14		32.4	29.06	22.81	320.7	99.07	41.31	3.32	4.18	2.14	4.85	4.93	5	5.08		5.15
L125×	8	14	33.7	19.75	15.5	297	88.2	32.52	3.88	4.88	2.5	5.34	5.41	5.48	5.55		5.62
	10		34.5	24.37	19.13	361.7	104.8	39.97	3.85	4.85	2.48	5.38	5.45	5.52	5.59		5.66
	12		35.3	28.91	22.7	423.2	119.9	47.17	3.83	4.82	2.46	5.41	5.48	5.56	5.63		5.7
	14		36.1	33.37	26.19	481.7	133.6	54.16	3.8	4.78	2.45	5.45	5.52	5.59	5.67		5.74
L140×	10	14	38.2	27.37	21.49	514.7	134.6	50.58	4.34	5.46	2.78	5.98	6.05	6.12	6.2		6.27
	12		39	32.51	25.52	603.7	154.6	59.8	4.31	5.43	2.77	6.02	6.09	6.16	6.23		6.31
	14		39.8	37.57	29.49	688.8	173	68.75	4.28	5.4	2.75	6.06	6.13	6.2	6.27		6.34
	16		40.6	42.54	33.39	770.2	189.9	77.46	4.26	5.36	2.74	6.09	6.16	6.23	6.31		6.38
L160×	10	16	43.1	31.5	24.73	779.5	180.8	66.7	4.97	6.27	3.2	6.78	6.85	6.92	6.99		7.06
	12		43.9	37.44	29.39	916.6	208.6	78.98	4.95	6.24	3.18	6.82	6.89	6.96	7.03		7.1
	14		44.7	43.3	33.99	1048	234.4	90.95	4.92	6.2	3.16	6.86	6.93	7	7.07		7.14
	16		45.5	49.07	38.52	1175	258.3	102.6	4.89	6.17	3.14	6.89	6.96	7.03	7.1		7.18
L180×	12	16	48.9	42.24	33.16	1321	270	100.8	5.59	7.05	3.58	7.63	7.7	7.77	7.84		7.91
	14		49.7	48.9	38.38	1514	304.6	116.3	5.57	7.02	3.57	7.67	7.74	7.81	7.88		7.95
	16		50.5	55.47	43.54	1701	336.9	131.4	5.54	6.98	3.55	7.7	7.77	7.84	7.91		7.98
	18		51.3	61.95	48.63	1881	367.1	146.1	5.51	6.94	3.53	7.73	7.8	7.87	7.95		8.02
L200×	14	18	54.6	54.64	42.89	2104	385.1	144.7	6.2	7.82	3.98	8.47	8.54	8.61	8.67		8.75
	16		55.4	62.01	48.68	2366	427	163.7	6.18	7.79	3.96	8.5	8.57	8.64	8.71		8.78
	18		56.2	69.3	54.4	2621	466.5	182.2	6.15	7.75	3.94	8.53	8.6	8.67	8.75		8.82
	20		56.9	76.5	60.06	2867	503.6	200.4	6.12	7.72	3.93	8.57	8.64	8.71	8.78		8.85
	24		58.4	90.66	71.17	3338	571.5	235.8	6.07	7.64	3.9	8.63	8.71	8.78	8.85		8.92

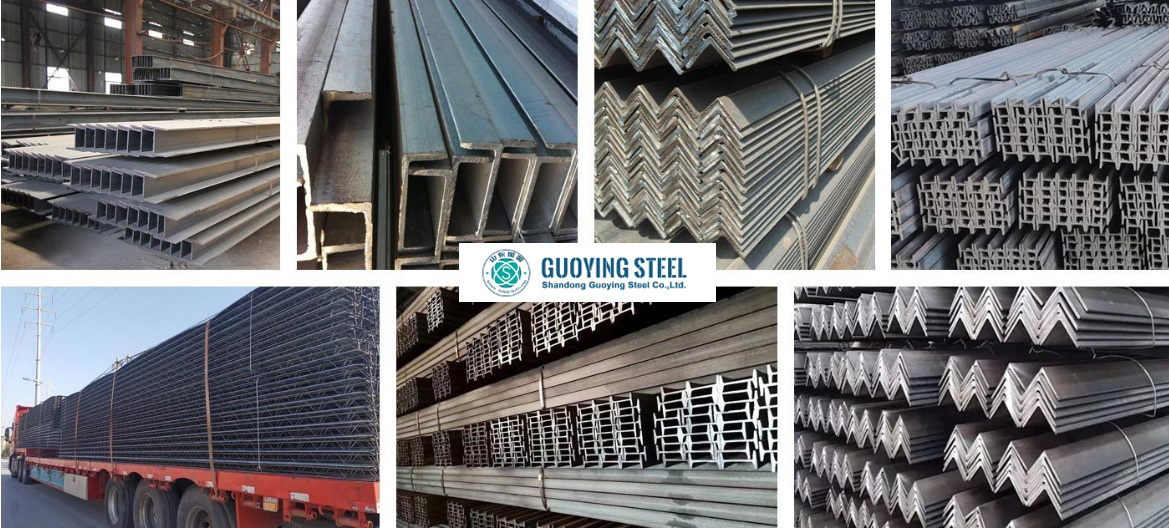

Packing and delivery

The main export products include steel products such as steel plates/coils/tubes/rods. The management has been engaged in the steel industry for more than 20 years, the management team is experienced and has established solid business relationships with customers and factories.Annual sales volume exceeds 10 million tons, and it provides customized processing services for a variety of products.
