Aluminum Coil

1050 aluminum alloy is formed by adding a small amount of copper in pure aluminum, which has excellent forming characteristics, high corrosion resistance, good weldability and electrical conductivity. It is widely used in products with low strength requirements, such as chemical instruments, sheet metal processing parts, deep drawing or spinning concave vessels, welding parts, heat exchangers, clock surface and disk surface, nameplate, kitchen utensils, decorations, reflective appliances, etc.

Category：

E-Mail：

Keywords：

Description

Product Description

Aluminum alloy is formed by adding a small amount of copper in pure aluminum, which has excellent forming characteristics, high corrosion resistance, good weldability and electrical conductivity. It is widely used in products with low strength requirements, such as chemical instruments, sheet metal processing parts, deep drawing or spinning concave vessels, welding parts, heat exchangers, clock surface and disk surface, nameplate, kitchen utensils, decorations, reflective appliances, etc.

Product Parameters

Width	20-3000mm or customized	Thickness	0.1-120mm or customized
Length	100-12000mm or customized	Certificate	ISO.SGS.BV
Standard	He, AiSi, ASTM, GB, DIN, EN etc.
Brand	1000 Series:1050 1060 1070 1100 1200 1235 etc. 3000Series:3003 3004 3005 3104 3105 3A21 etc. 5000 Series:5005 5052 5083 5086 5154 5182 5251 5754 5A05 etc. 6000 Series:6061 6063 6082 6A02 etc. 7000 Series:7050 7475 7075 etc. 8000 Series:8A06 8011 8090 etc.
Surface	Coating, embossing, drawing, polishing, anodizing, etc.
OEMService	Punching, cutting special size, making flat surface, surface treatment, etc.
Delivery time	received.30%After deposit7-15working day
Application	Construction, shipbuilding, decoration, industry, manufacturing, machinery, hardware and other fields
Sample	Free OffersSample
Packaging	Strapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement

chemical composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others: Each	Others: Total	Al: Min.
1050	0.25	0.40	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.50
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.60
1070	0.20	0.25	0.04	0.03	0.03	-	0.04	0.03	0.05	-	99.70
1100	0.95 Si Fee		0.05~0.20	0.05	-	-	0.1	-	0.05	0.15	99.0
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.10	0.25	0.15	0.05	0.15	Allowance
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.10	0.25	0.15	0.05	0.15	91.5 - 95.5
2024	0.50	0.50	3.8~4.9	0.3~0.9	1.2~1.8	0.10	0.25	0.15	0.05	0.15	Allowance
3003	0.60	0.70	0.05~0.20	1.0~1.5	-	-	0.10	-	0.05	0.15	Allowance
3A21	0.60	0.70	0.20	1.0-1.6	0.05	-	0.15	0.1-0.2	-	-	Allowance
3004	0.30	0.70	0.25	1.0~1.5	0.8~1.3	-	0.25	-	0.05	0.15	Allowance
3005	0.60	0.70	0.30	1.0~1.5	0.2~0.6	0.10	0.25	0.10	0.05	0.15	Allowance
3105	0.60	0.70	0.30	0.3~0.8	0.2~0.8	0.20	0.40	0.10	0.05	0.15	Allowance
5005	0.30	0.70	0.20	0.20	0.5~1.1	0.1	0.25	-	0.05	0.15	Allowance
5052	0.25	0.40	0.10	0.10	2.2~2.8	0.15~0.35	0.10	-	0.05	0.15	Allowance
5754	0.40	0.40	0.10	0.50	2.6~3.6	0.30	0.20	0.15	0.05	0.15	Allowance
5A05	0.50	0.50	0.10	0.3-0.6	4.8-5.5	-	0.20	-	0.05	0.05	Allowance
5083	0.40	0.40	0.10	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	Allowance
6061	0.40~0.8	0.70	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	Allowance
6082	0.70~1.3	0.50	0.10	0.4~1.0	0.6~1.2	0.25	0.20	0.10	0.05	0.15	Allowance
7075	0.40	0.50	1.2~2.0	0.30	2.1~2.9	0.18~0.28	5.1~6.1	0.20	0.05	0.15	Allowance

Mechanical properties

Tensile Strength

(MPa)

Test stress

0.2% (MPa)

Hardness

ElongationRate

(%)

105-145

≥85

≥34

≥12

Physical Performance

Density	Melting Point	modulus of elasticity	Thermal conductivity	thermal expansion	Resistivity
2.71 Kg/m³	650°C	71 GPa	222W/m.K	24 × 10-6/K	0.282 × 10-6Ω.m

annealing state

Brand	annealing state
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Scope of application

AluminumUSES AND APPLICATION AREA
Food Packaging	Beverage can ends, cans, bottle caps, etc.
Building	Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
Transportation	Auto parts, passenger car bodies, aviation ships and air cargo containers.
ElectronicEquipment	Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer Goods	umbrellas, cooking utensils, sports equipment, etc
Other	Military, color coated aluminum plate

Alloy series	China	America	Europe
1xxx 系列	1050	-	-
	1050A	-	EN AW-1050A
	1060	1060	-
	1100	1100	-
2xxx 系列	2024	2024	EN AW-2024
3xxx 系列	3003	3003	EN AW-3003
	3004	3004	EN AW-3004
	3005	3005	EN AW-3005
	3105	3105	EN AW-3105
5xxx 系列	5005	5005	EN AW-5005
	5052	5052	EN AW-5052
	5754	5754	EN AW-5754
	5083	5083	EN AW-5083
	5086	5086	EN AW-5086
	5182	-	EN AW-5182
	5049	-	EN AW-5049
	5251	-	EN AW-5251
6xxx 系列	6061	6061	EN AW-6061
6xxx 系列	6082	-	EN AW-6082
7xxx 系列	7075	7075	EN AW-7075

Packing and delivery

The main export products include steel products such as steel plates/coils/tubes/rods. The management has been engaged in the steel industry for more than 20 years, the management team is experienced and has established solid business relationships with customers and factories. Annual sales volume exceeds 10 million tons, and it provides customized processing services for a variety of products.

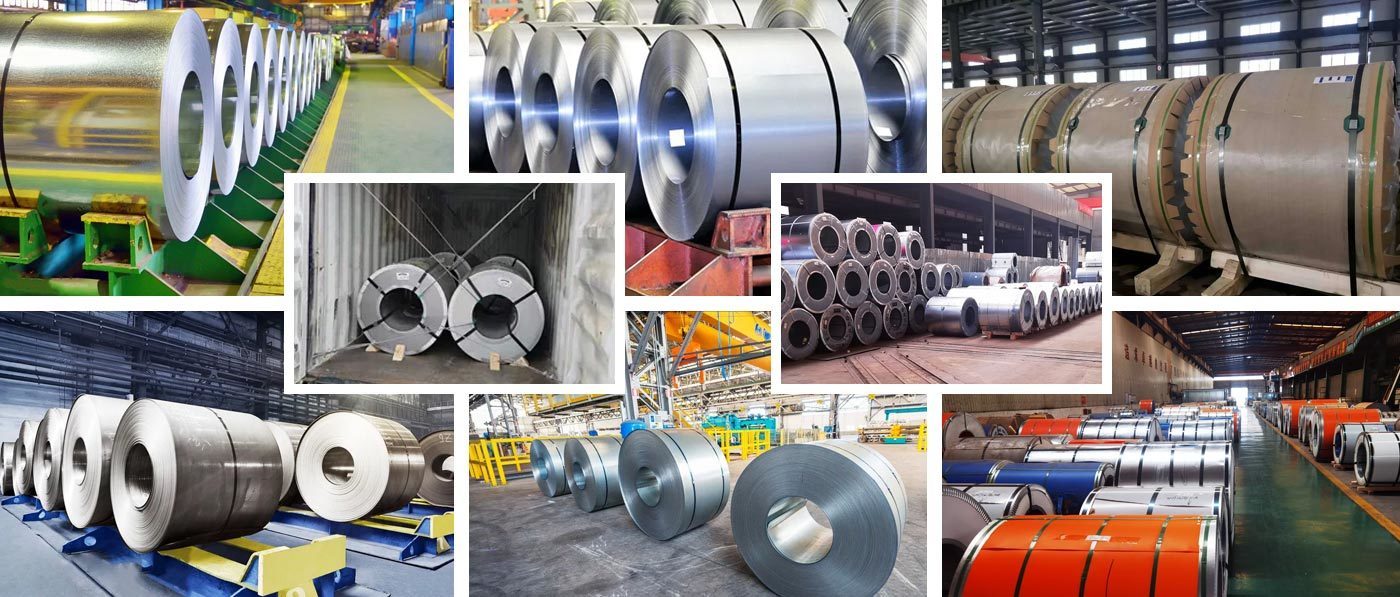

Factory Appearance

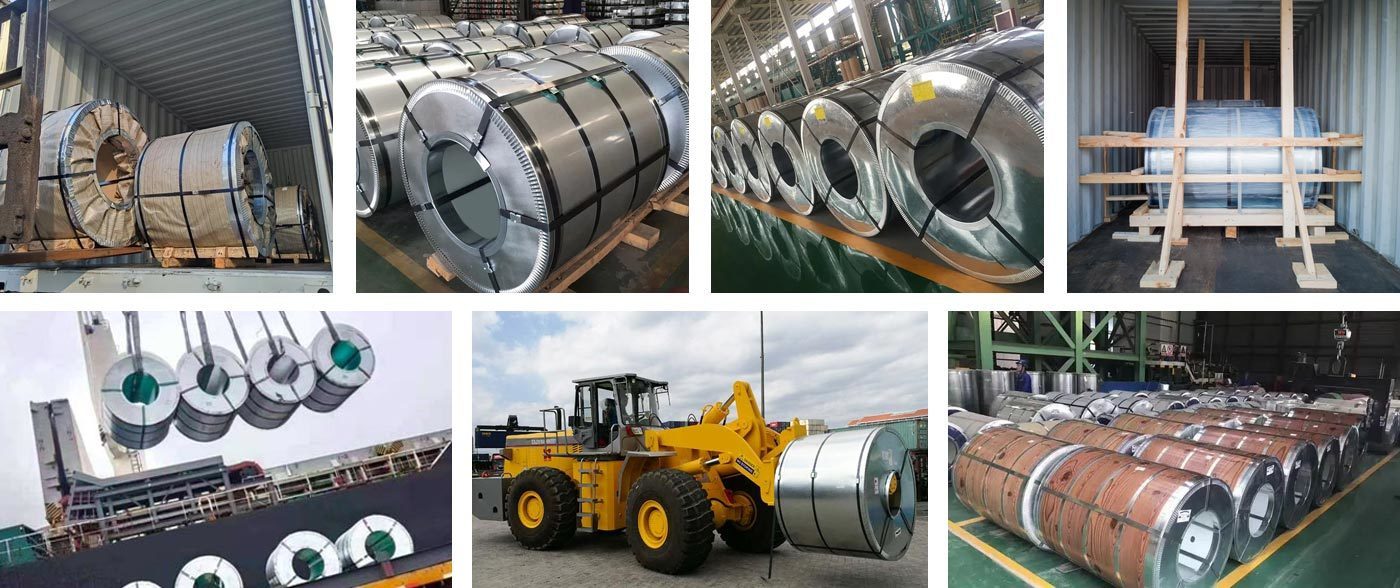

Packing and shipping

The company mainly exports to more than 60 countries including Australia Peru,Colombia, Brazil, Bangladesh, India, South Korea, Pakistan, Italy, Turkey, etc. The main export products include steel plate/coils/pipes/bars and other steel products.

Customer visit

The management has been engaged in steel industry for more than 20 years, full of experience for managing team and strong business relations with our valuable customers and factories.

Application areas

Annual sales more than 10 million tons, and provides a variety of product customized processing services. Our company always sticks to the following business principles: High Quality Products to win the market; Competitive Price to attract customers; Excellent Service to gain reputation.
